Our Products
Designed for real-time concrete temperature and curing monitoring, built for field conditions.

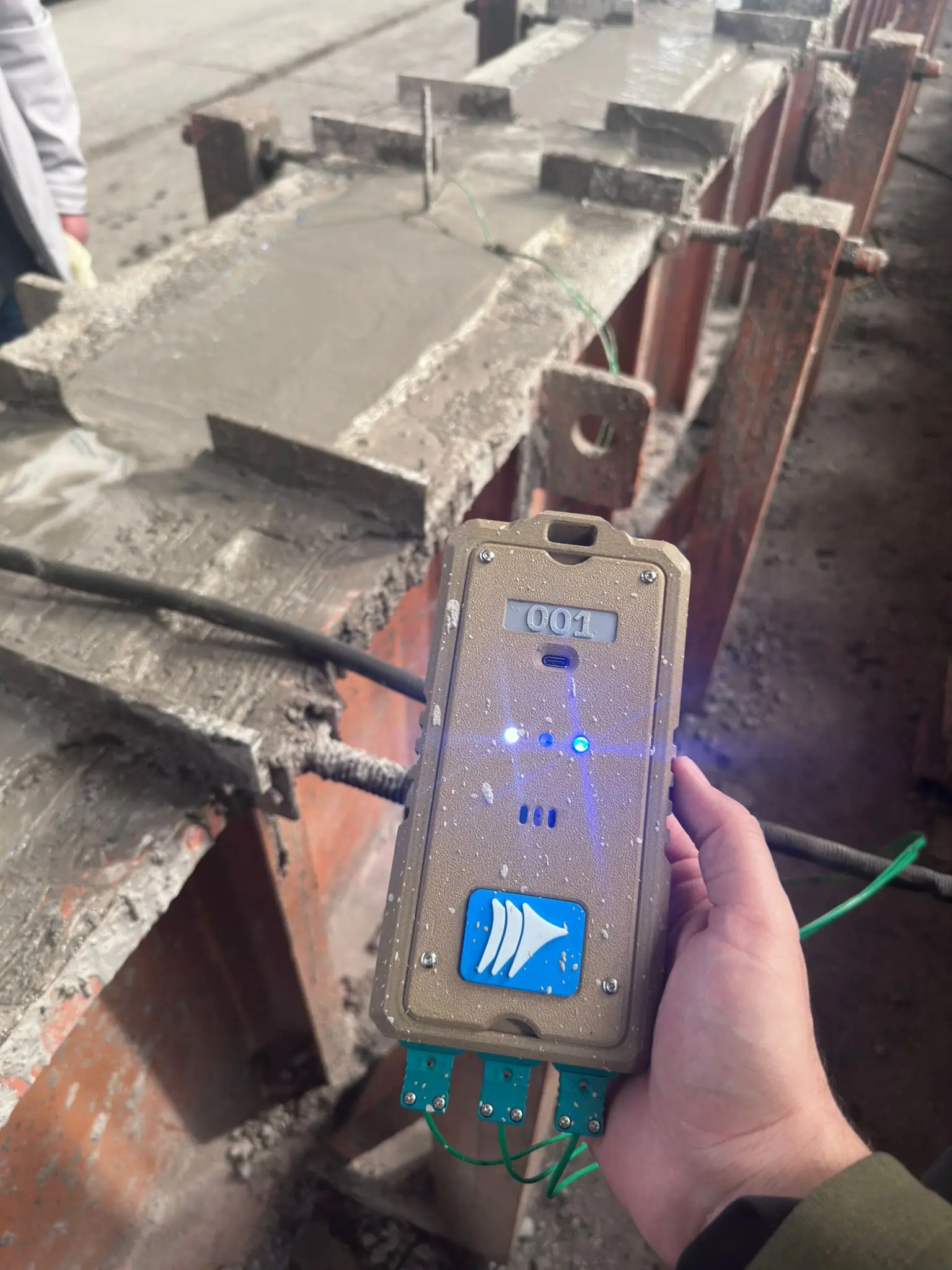

PX-Sens
Wireless temperature sensor specially designed for concrete temperature and curing monitoring. Measures concrete temperature from the same and different points with three thermocouple inputs. Also measures ambient temperature and humidity using a built-in sensor. After the thermocouple tips are directly embedded in concrete, it wirelessly transmits data to the PX-Gateway in real time.
3× K-Type Thermocouple Inputs
Measure concrete temperature from multiple points
Built-in Ambient Sensor
Outside temperature & humidity
Easy Bluetooth Setup
Start reading sessions instantly via the mobile app
10-Day Battery Life
Long-lasting power for extended deployments
Wireless Communication
Encrypted wireless protocol for reliable field communication
Offline Capable
Stores up to 20,000 records when connectivity is lost
Technical Specifications
| Thermocouple Inputs | 3× K-type Thermocouple channels (-200°C to +1250°C) |
| Ambient Sensor | Temperature (-40°C to +125°C) & Humidity (0–100% RH) |
| Operating Temp. Range | -20°C to +60°C |
| Connectivity | Bluetooth + Wi-Fi |
| Accuracy | ±0.15% |
| Battery Life | 10 days |
| Battery Type | Rechargeable Li-Po, 3000 mAh |
| Charging | USB Type-C |
| IP Rating | TBD |
| Wireless Protocol | Encrypted wireless |
| Communication Range | ~1 km in open air |
| Offline Storage | 20,000 records |
| External Material | Carbon fibre reinforced ASA |
| Dimensions | 195 × 97 × 30 mm |
| Weight | ~275g |
PX-Gateway
Central hub that collects temperature data from all deployed sensors and transmits it to the PrecastX cloud platform. Supports both 4G/LTE cellular and Wi-Fi connectivity for flexible field deployment.
6 PX-Sens with encryption
Up to 6 concurrent sensors per hub over encrypted wireless link
4G/LTE + Wi-Fi
Dual connectivity for any environment
Easy Setup
Just open your PX-Gateway and make sure it's online.
Technical Specifications
| Device Capacity | Up to 6 PX-Sens can connect simultaneously over encrypted wireless link. |
| Connectivity | Bluetooth + 4G/LTE (NB-IoT) + Wi-Fi |
| Battery Life | 3 days |
| Battery Type | Rechargeable Li-Po, 3000 mAh |
| Charging | USB Type-C |
| IP Rating | TBD |
| Data Protocol | MQTT over TLS |
| Inter-device Data Protocol | Encrypted wireless |
| External Material | Carbon fibre reinforced ASA |
| Dimensions | 165 × 95 × 30 mm |
| Weight | ~275g |
| Operating Temperature | -20°C to +60°C |
Ready to Get Started?
Get started with PrecastX and bring data-driven quality control to your precast manufacturing.
Contact Us
